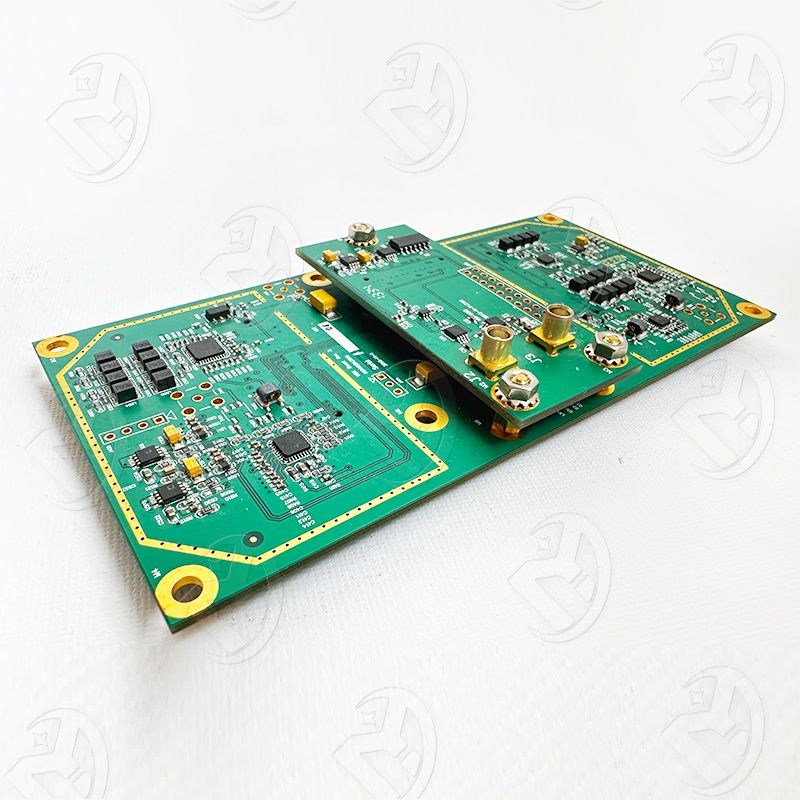

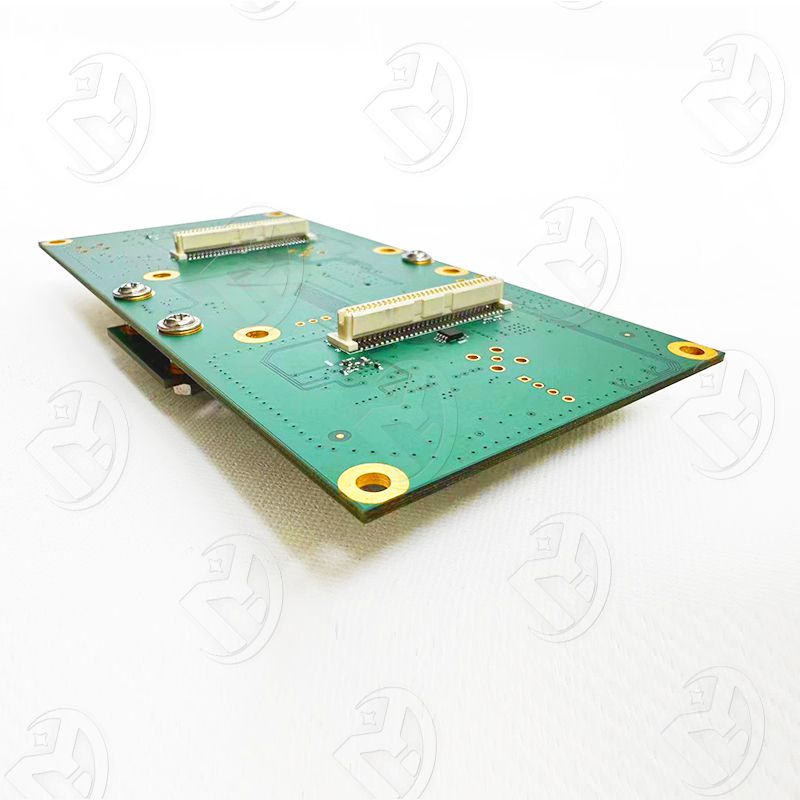

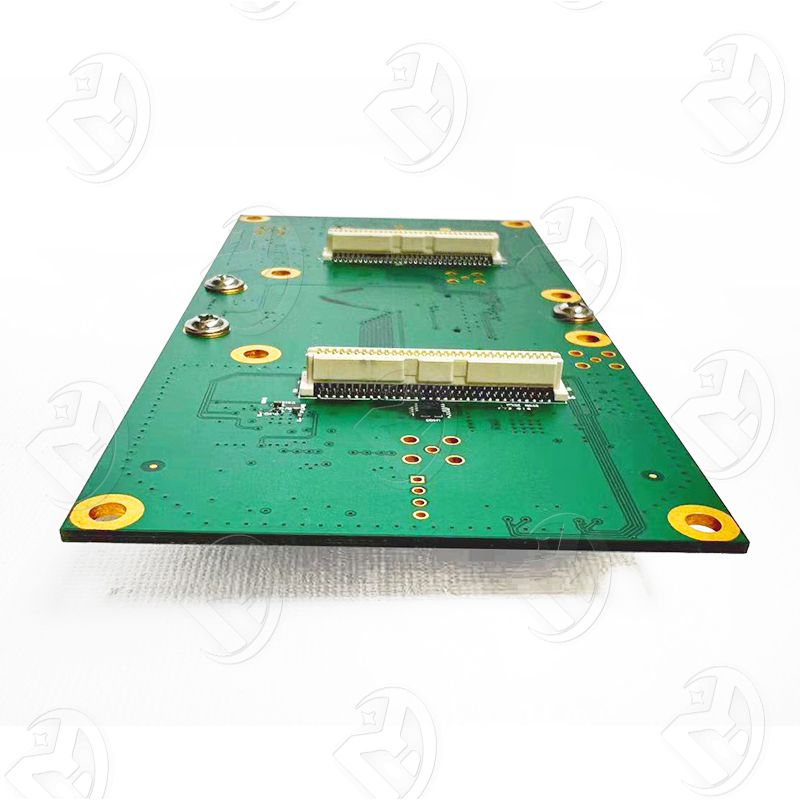

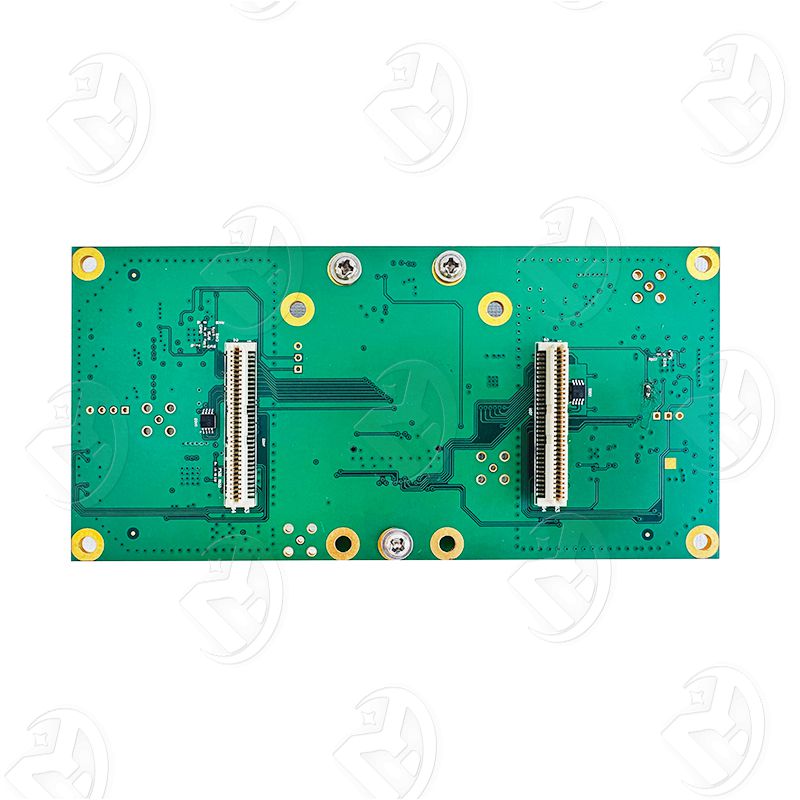

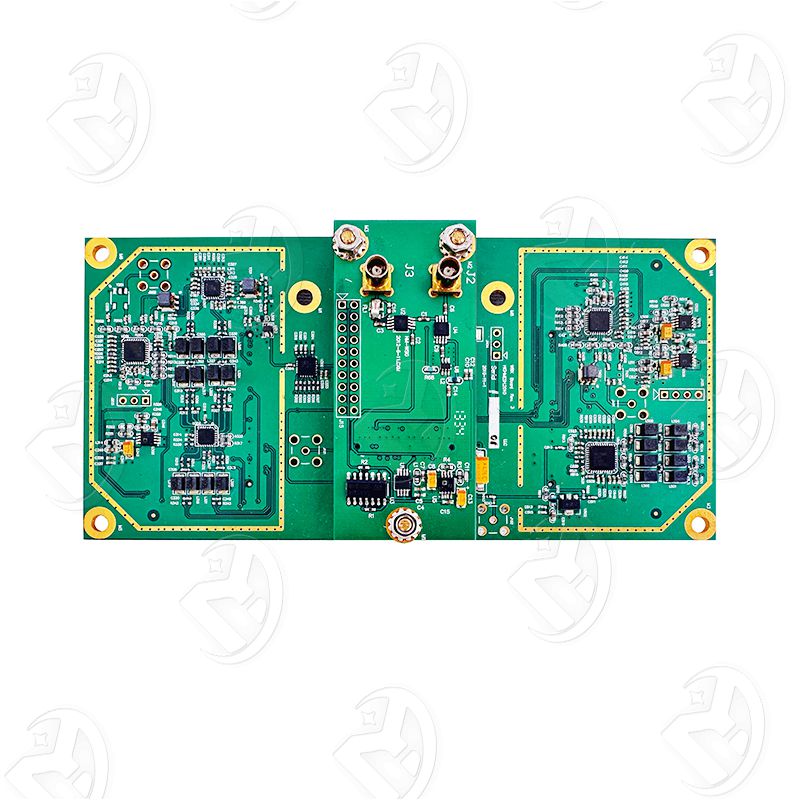

The Digilent Ettus WBX is a wide bandwidth transceiver that provides up to 100 mW of output power and a noise figure of 5 dB. The LO’s for the receive and transmit chains operate independently but can be synchronized for MIMO operation. The WBX provides 40 MHz and 120MHz of bandwidth capability and is ideal for applications requiring access to a number of different bands within its range – 50 MHz to 2.2 GHz.
Product Details
The Digilent Ettus WBX is a wide bandwidth transceiver that provides up to 100 mW of output power and a noise figure of 5 dB. The LO’s for the receive and transmit chains operate independently but can be synchronized for MIMO operation. The WBX provides 40 MHz and 120MHz of bandwidth capability and is ideal for applications requiring access to a number of different bands within its range – 50 MHz to 2.2 GHz.
Frequency: 50MHz – 2.2GHz
Bandwidth: 40 / 120MHz
Gain: 0 – 31.5dB
The WBX supports wide range of applications. Example application areas include public safety, wireless communication and ISM transceivers.
