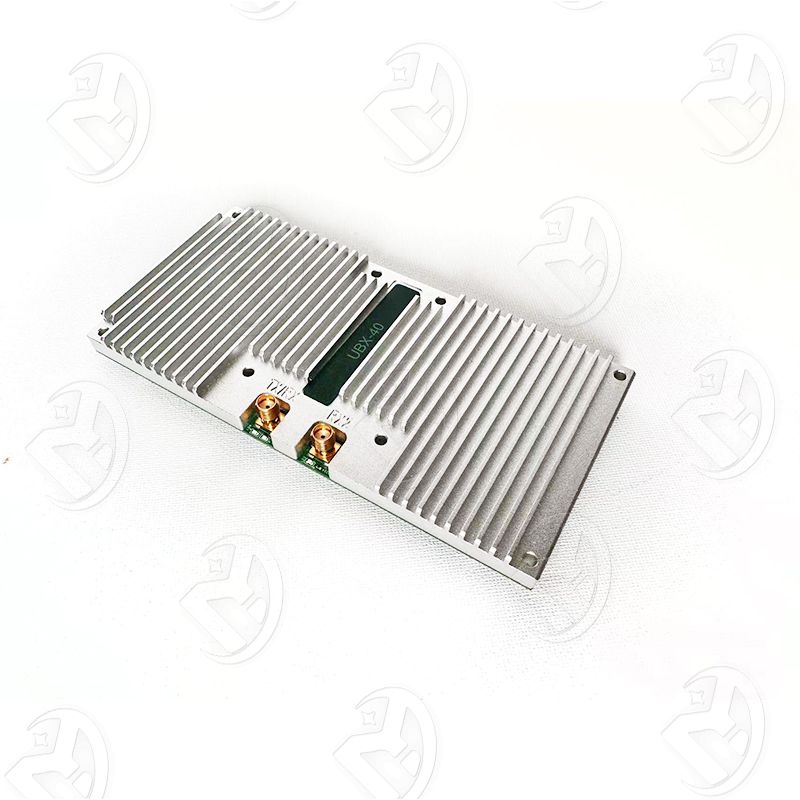

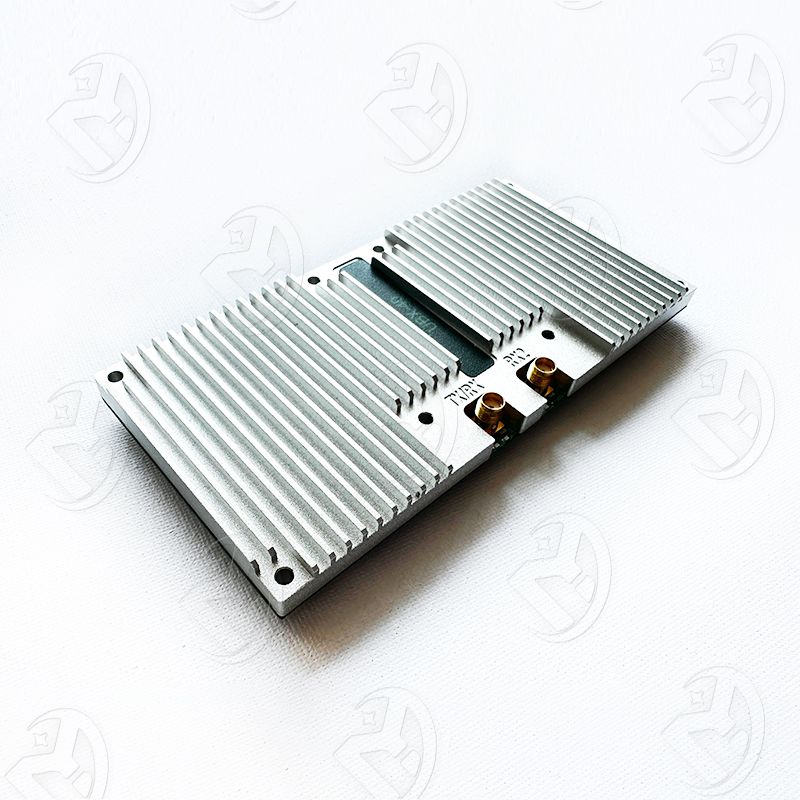

UBX40

Share:

Product Details

FEATURES


● Wide Frequency Range: 10 MHz ‐ 6 GHz

● Bandwidth and Compatibility:

UBX 40: 40 MHz Bandwidth

Compatible with N210 /X310

UBX 160: 160 MHz Bandwidth

Compatible with X310

● RF shielding



● Full duplex operation with independent TX and RX frequencies



● Synthesizer synchronization for applications requiring phase coherence or alignment


UBX40


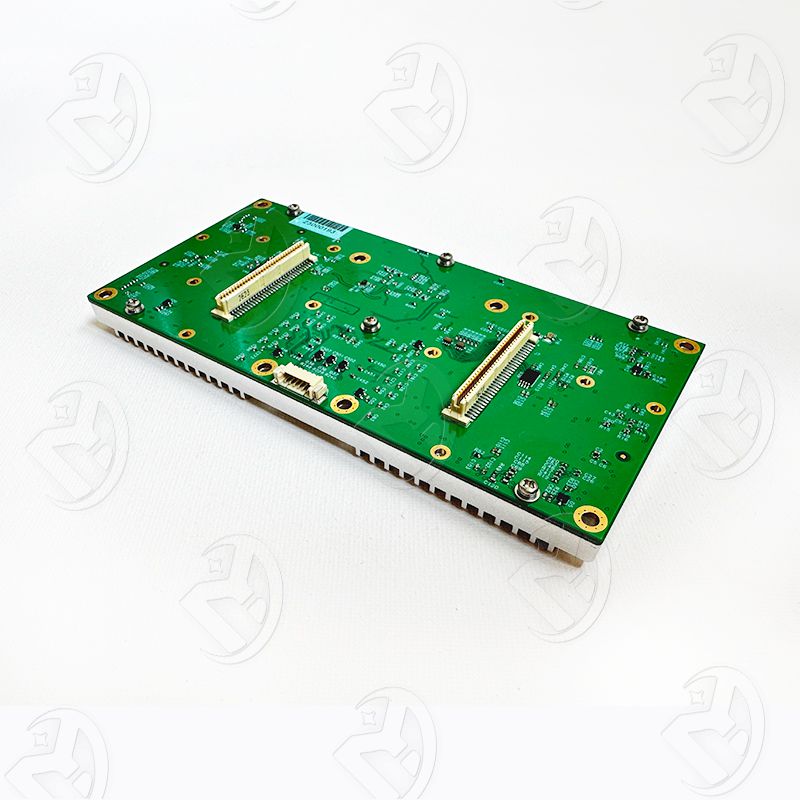

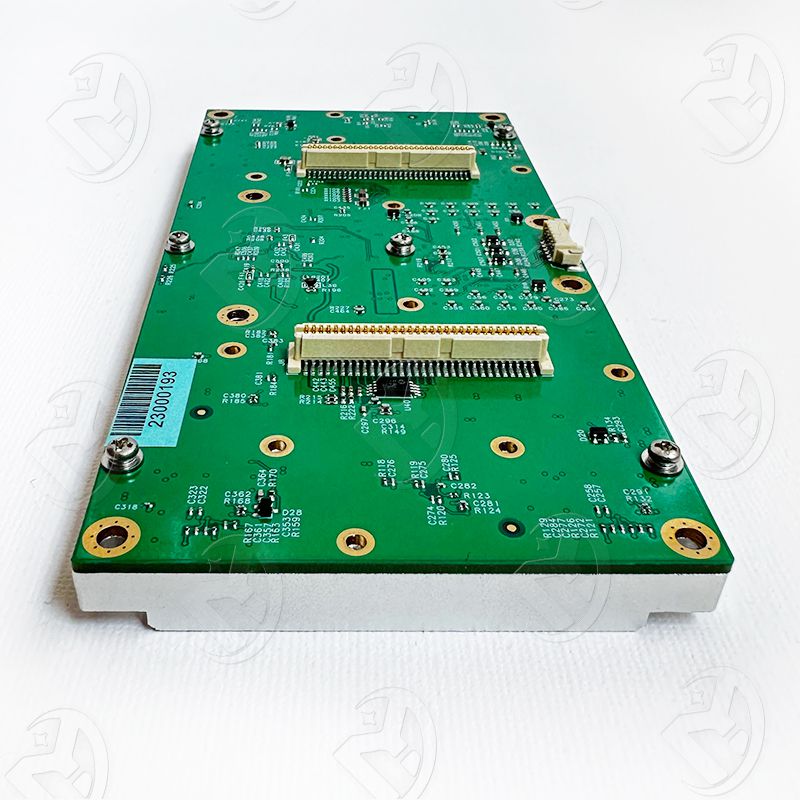

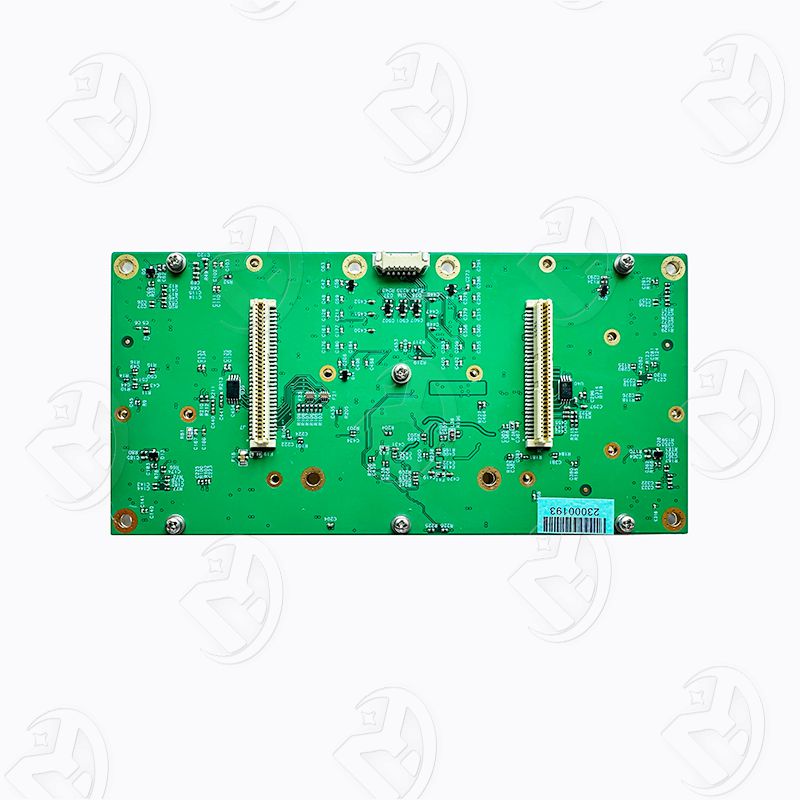

UBX DAUGHTERBOARD PRODUCT OVERVIEW

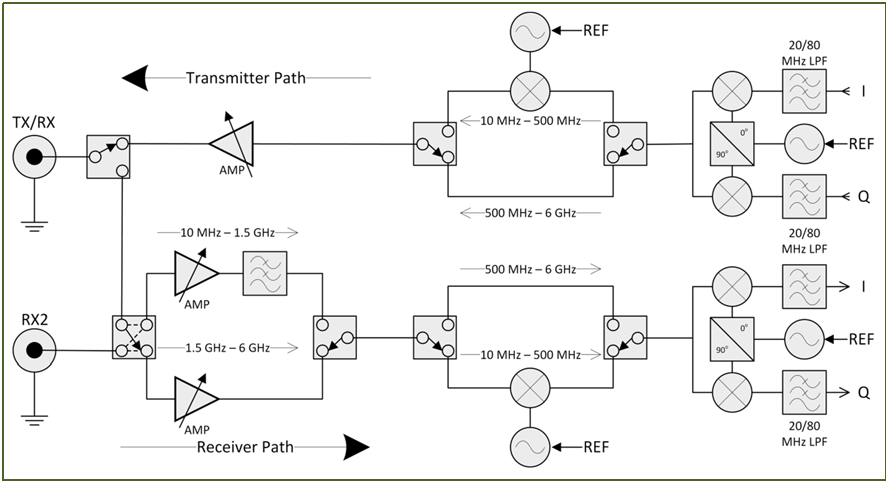

The UBX is a full‐duplex, wideband transceiver covering a frequency range from 10 MHz to 6 GHz with 40 MHz and 160 MHz instantaneous bandwidth options. The daughterboard enables full‐duplex operation with the capability of achieving coherent and phase‐aligned* operation across multiple channels for MIMO and direction finding applications. The UBX daughterboard works interchangeably with existing USRP devices using the latest version of the open source USRP Hardware Driver (UHD) software.

* UBX phase alignment is only supported on X Series USRP devices.


UBX40


RX
RX Noise Figure10 ‐ 20 MHz3 ‐ 4 dB
20 ‐ 500 MHz2 ‐ 3 dB
0.5 ‐ 1.5 GHz2 ‐ 4 dB
1.5 ‐ 4 GHz4 ‐ 5 dB
4 GHz ‐ 6 GHz5 ‐ 7 dB
RX IIP3 (Max)*10** ‐ 35MHz4 ‐ 10 dBm
35 ‐ 500 MHz10 ‐ 12 dBm
0.5 ‐ 1.5 GHz8 ‐ 13 dBm
1.5 ‐ 6 GHz8 ‐ 9 dBm
RX IQ Imbalance10 MHz ‐ 6GHz< -30 dBc


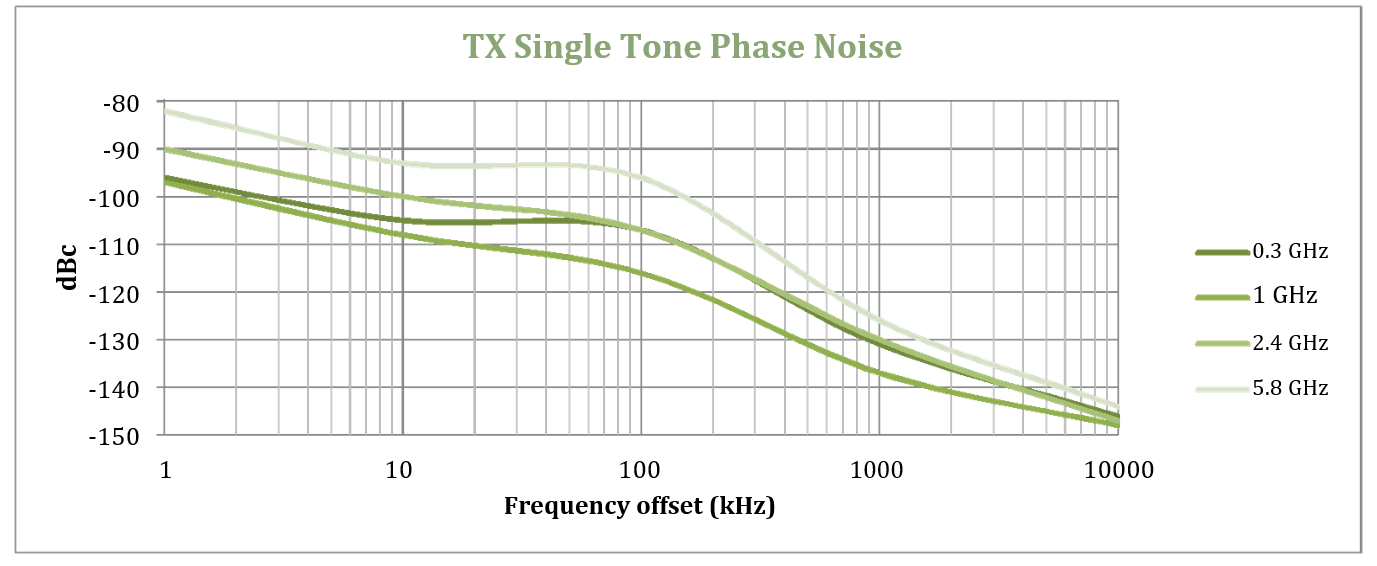

TX
TX Power (Max)10 MHz ‐ 3.5 GHz> 20 dBm
3.5 ‐ 4 GHz18 ‐ 20 dBm
4 ‐ 5 GHz13 ‐ 18 dBm
5 ‐ 6 GHz7 ‐ 13 dBm
TX OIP310** ‐ 35MHz> 40 dBm
35 ‐ 500 MHz> 36 dBm
0.5 ‐ 1.5 GHz> 30 dBm
1.5 ‐ 6 GHz> 26 dBm
TX IQ Imbalance10 MHz ‐ 6GHz< -30 dBc
