Product Details
● Wide Frequency Range: 10 MHz ‐ 6 GHz
● Bandwidth and Compatibility:
UBX 40: 40 MHz Bandwidth
Compatible with N210 /X310
UBX 160: 160 MHz Bandwidth
Compatible with X310
● RF shielding
● Full duplex operation with independent TX and RX frequencies
● Synthesizer synchronization for applications requiring phase coherence or alignment

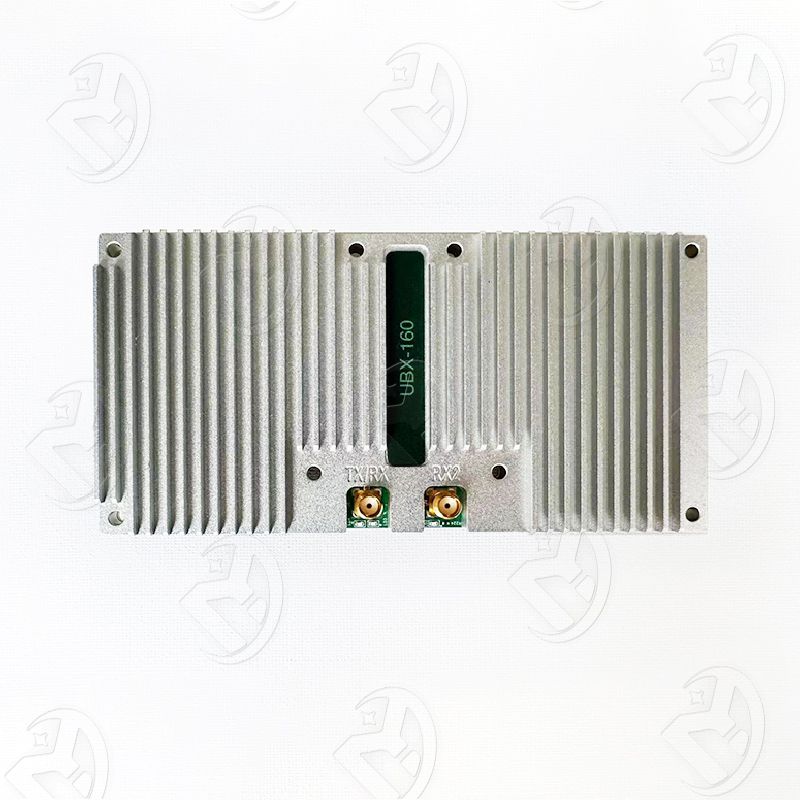

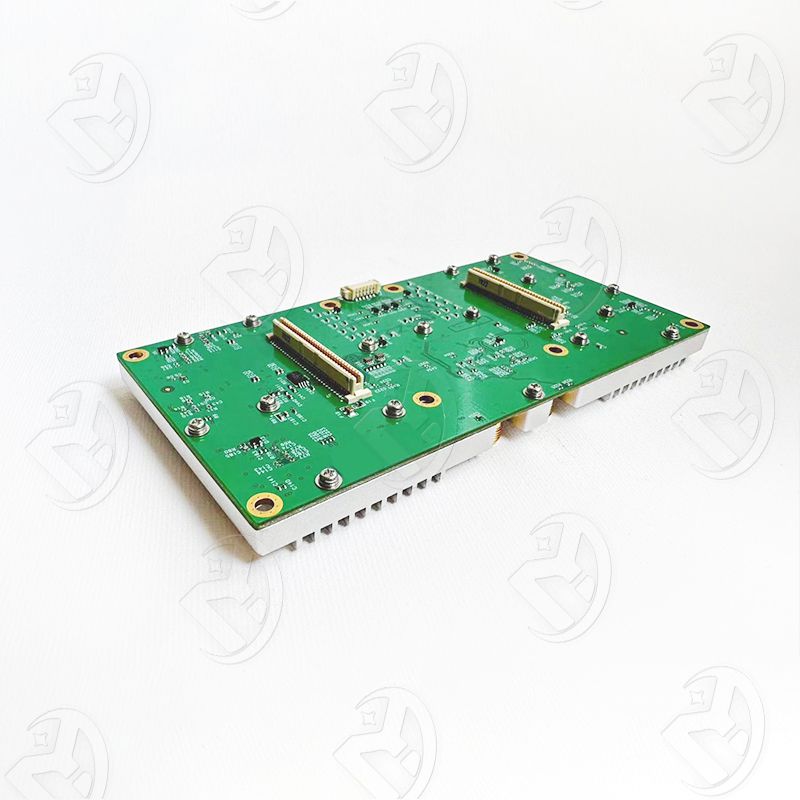

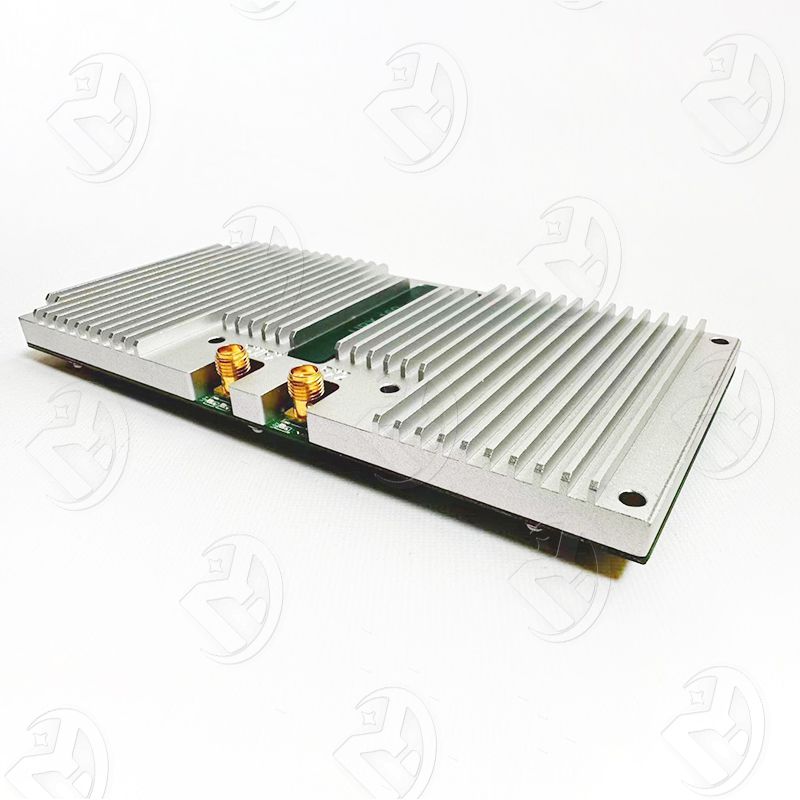

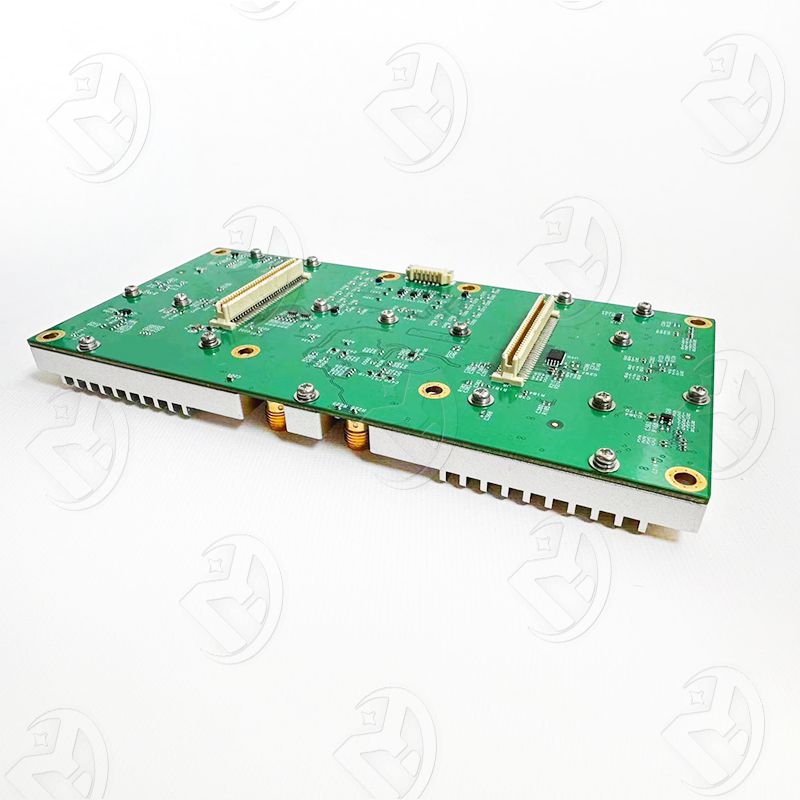

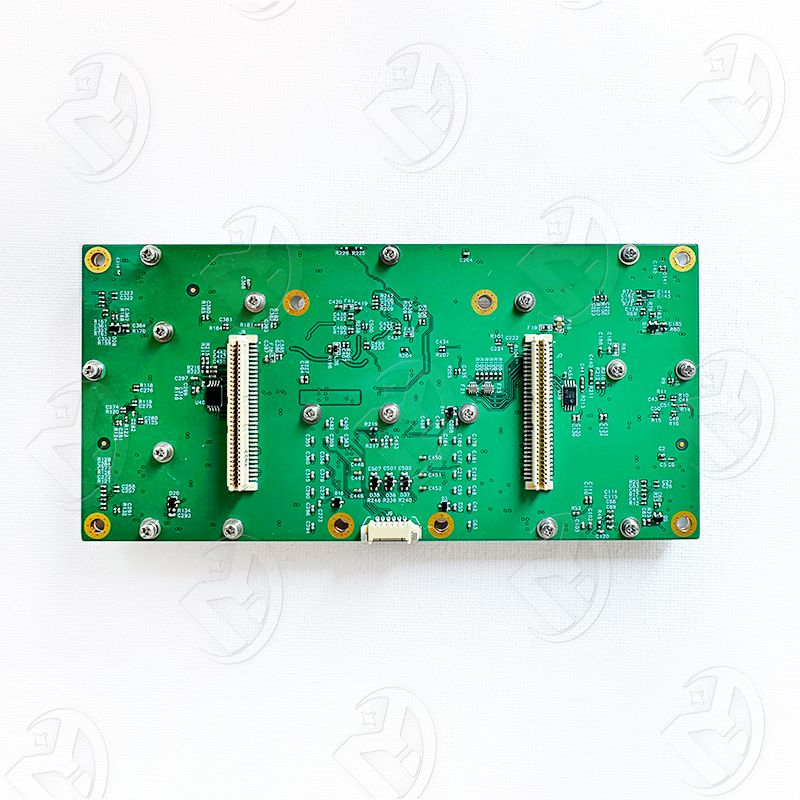

UBX DAUGHTERBOARD PRODUCT OVERVIEW
The UBX is a full‐duplex, wideband transceiver covering a frequency range from 10 MHz to 6 GHz with 40 MHz and 160 MHz instantaneous bandwidth options. The daughterboard enables full‐duplex operation with the capability of achieving coherent and phase‐aligned* operation across multiple channels for MIMO and direction finding applications. The UBX daughterboard works interchangeably with existing USRP devices using the latest version of the open source USRP Hardware Driver (UHD) software.
* UBX phase alignment is only supported on X Series USRP devices.
| RX | ||
| RX Noise Figure | 10 ‐ 20 MHz | 3 ‐ 4 dB |
| 20 ‐ 500 MHz | 2 ‐ 3 dB | |
| 0.5 ‐ 1.5 GHz | 2 ‐ 4 dB | |
| 1.5 ‐ 4 GHz | 4 ‐ 5 dB | |
| 4 GHz ‐ 6 GHz | 5 ‐ 7 dB | |
| RX IIP3 (Max)* | 10** ‐ 35MHz | 4 ‐ 10 dBm |
| 35 ‐ 500 MHz | 10 ‐ 12 dBm | |
| 0.5 ‐ 1.5 GHz | 8 ‐ 13 dBm | |
| 1.5 ‐ 6 GHz | 8 ‐ 9 dBm | |
| RX IQ Imbalance | 10 MHz ‐ 6GHz | < -30 dBc |
| TX | ||
| TX Power (Max) | 10 MHz ‐ 3.5 GHz | > 20 dBm |
| 3.5 ‐ 4 GHz | 18 ‐ 20 dBm | |
| 4 ‐ 5 GHz | 13 ‐ 18 dBm | |
| 5 ‐ 6 GHz | 7 ‐ 13 dBm | |
| TX OIP3 | 10** ‐ 35MHz | > 40 dBm |
| 35 ‐ 500 MHz | > 36 dBm | |
| 0.5 ‐ 1.5 GHz | > 30 dBm | |
| 1.5 ‐ 6 GHz | > 26 dBm | |
| TX IQ Imbalance | 10 MHz ‐ 6GHz | < -30 dBc |
