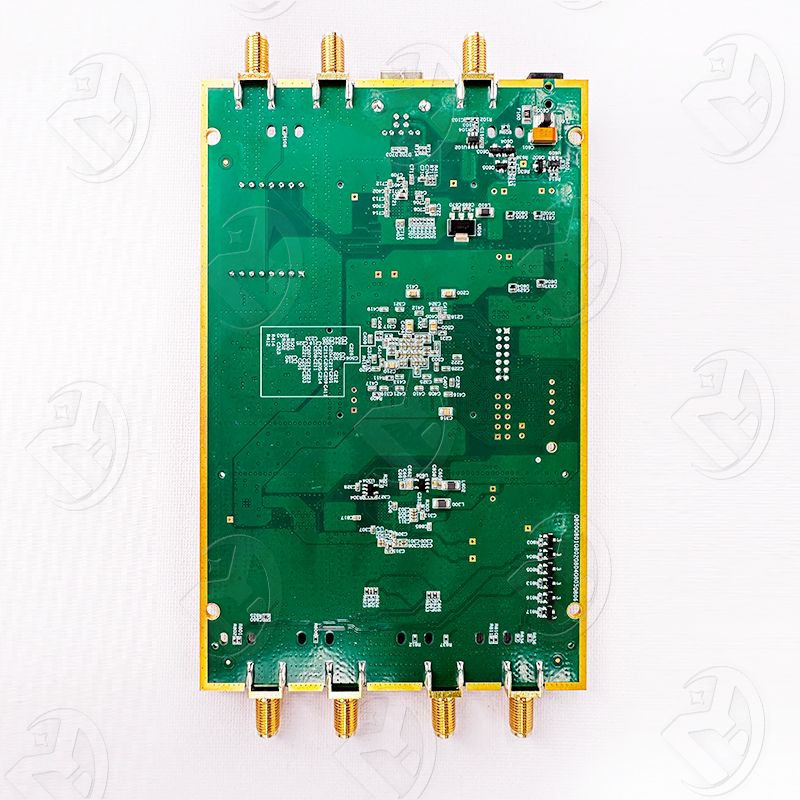

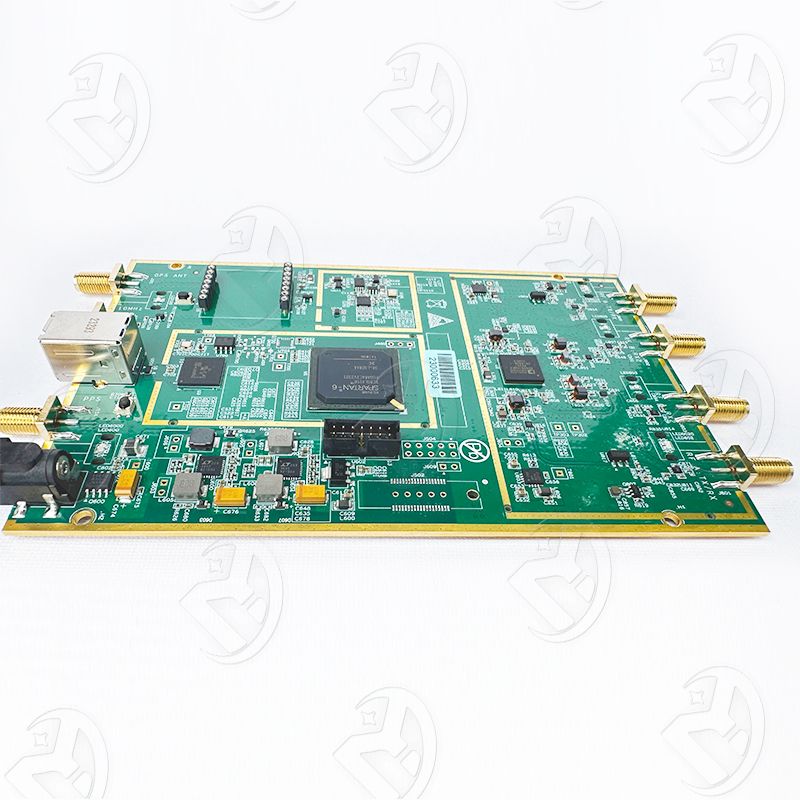

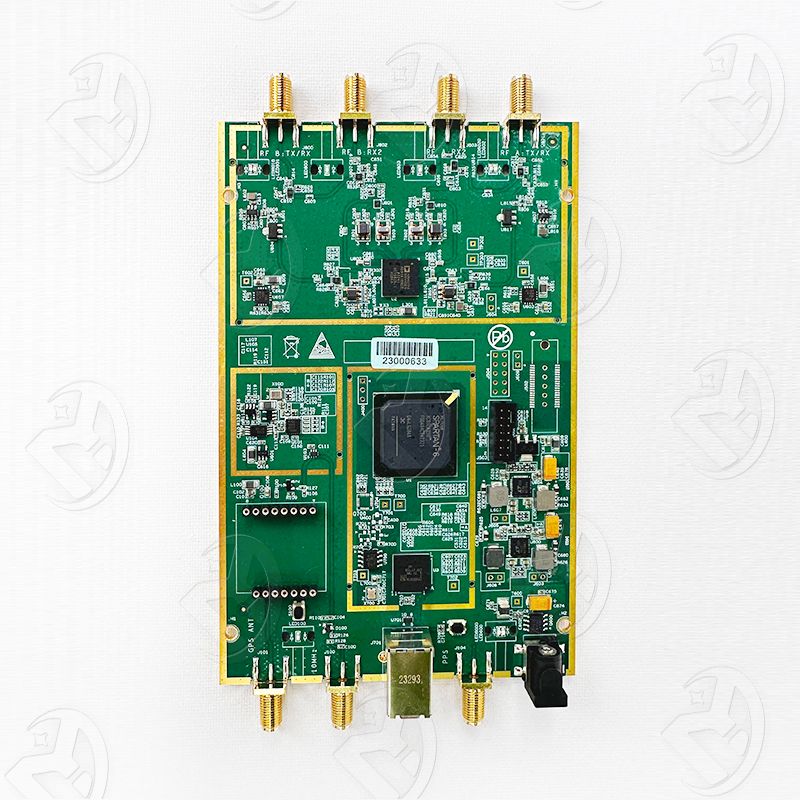

HM-B210（Single-Board）

Description

The B210 is a highly integrated Universal Software Radio Peripheral (USRP) with a frequency range of 70 MHz–6GHz.

HM-B210 is an entry-level SDR device. It adopts an integrated RF transceiver and provides a real-time signal bandwidth of up to 56MHz. In terms of hardware, it provides a programmable Spartan6 FPGA, USB 3.0 connection and an external power interface. In terms of software, thanks to the good compatibility of USRP hardware driver (UHD), users can use third-party platforms (GNU Radio) for quick development. Users can build their own projects with rich open-source projects as references (e.g., 4G/5G demonstration refer to OAI) to get rapid prototype.

Features

• Highly integrated, frequency range from 70MHz to 6GHz

• Up to 56 MHz of instantaneous bandwidth

• 2 TX & 2 RX, Half or Full Duplex with fully-coherent 2x2 MIMO capability

• USB 3.0 SuperSpeed interface with standard Type B USB 3.0 connectro

• Open-source UHD hardware driver

• Programmable Spartan 6 XC6SLX150 FPGA

• GNU Radio, C++ and Python APIs

• AD9361 RF Front-end

• GPIO capability

Application

Experiment with the HM-B210 across a wide range of applications including: FM and TV broadcast, cellular, GPS, WiFi, ISM, and more. Users can immediately begin prototyping in GNU Radio and participate in the open-source SDR community. Full support by the UHD software allows seamless code reuse from existing designs, compatibility with open-source applications.

Specifications

Block Diagram
