Product Details
Device Variants
• B200mini (XC6SLX75 C-Grade)
• B200mini-i (XC6SLX75 I-Grade)
• B205mini-i (XC6SLX150 I-Grade)
• B20Xmini-I (XC7A200T I-Grade)
RF Capabilities
• 1 TX, 1 RX
• 70 MHz to 6 GHz frequency range
• Up to 56 MHz bandwidth
Software
• UHD version 3.9.2 or later
• GNU Radio
• C/C++
• Python
High-Speed Interface and Power
• USB 3.0
• USB powered
Synchronization
• 10 MHz clock reference or PPS time reference
Peripherals
• GPIO
• JTAG

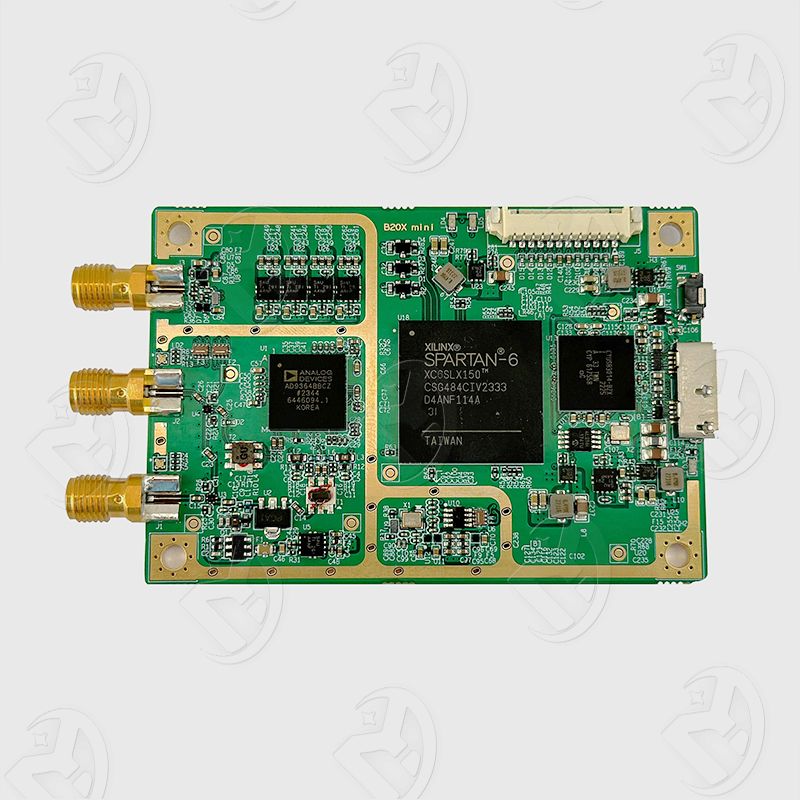

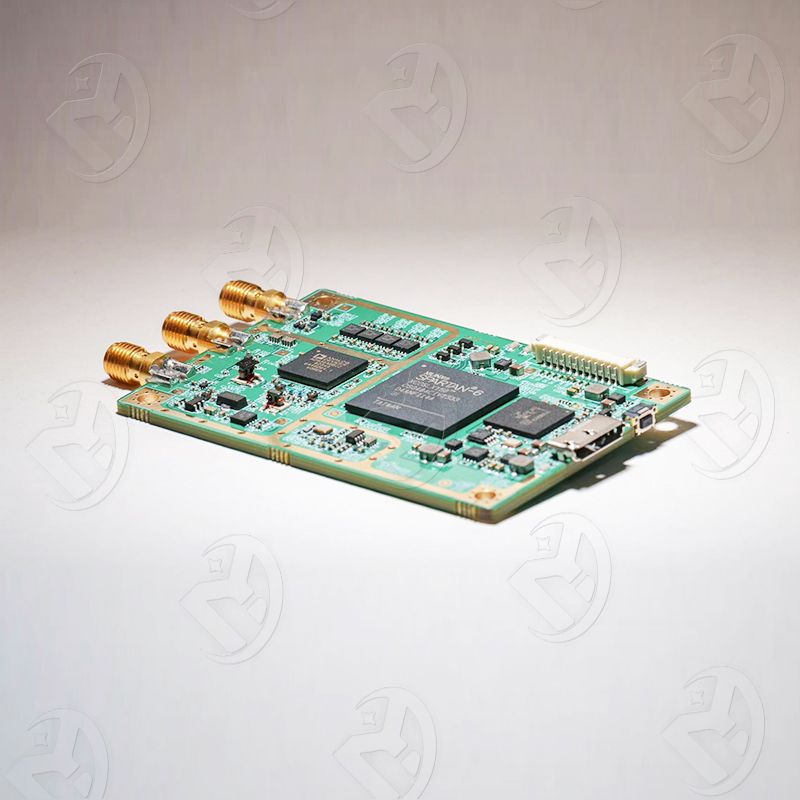

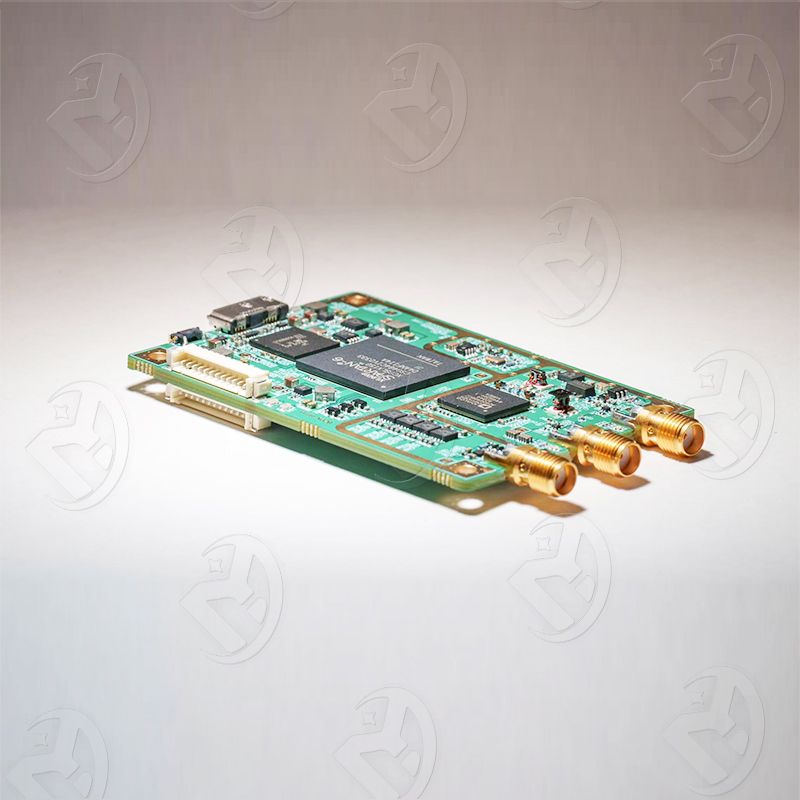

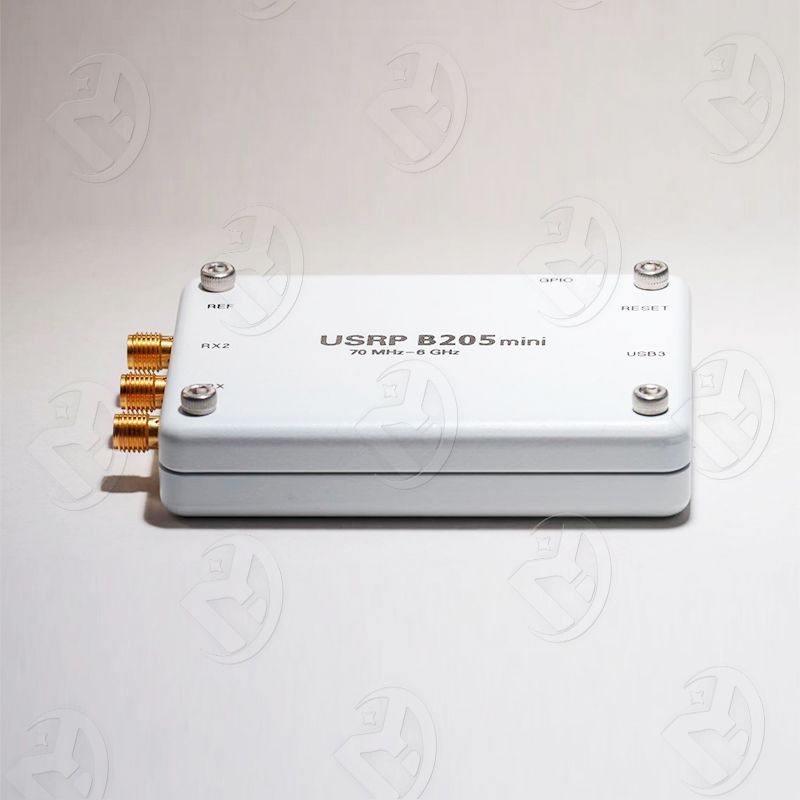

The HM B200mini Series delivers a 1x1 software defined radio / cognitive radio in the size of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable Xilinx Spartan-6 / Artix7 FPGA, this flexible and compact platform is ideal for both hobbyist and OEM applications. The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The HM B200mini Series also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal. There are four configurations in this product family with options for a larger or industrial-grade FPGA. The software driver API supports all products and enables users to efficiently develop applications then seamlessly shift designs between platforms as requirements expand.
Hobbyists and New Users
The powerful UHD software API reduces the learning curve and provides a quick start experience for new users and long-time hobbyists interested in AM/FM applications, cellular communication, and algorithm exploration.
Wireless Signal Discovery and Analysis
The content-rich GNU Radio community provides a wide range of tools and algorithms that enable discovery and analysis of air interface protocols.
OEM and Integration
The compact form factor and cost-effective design of the B200mini Series make it ideal for integration into larger systems for prototyping and deployment. The 10 MHz ref/ PPS and GPIO features provide seamless synchronization and extensions.
| Specification | Typical | Unit |
| RF Performance | ||
| IIP3 (at typical NF) | -20 | dBm |
| Power Output | > 10 | dBm |
| Receive Noise Figure | < 8 | dB |
| Conversion Performance and Clocks | ||
| ADC Sample Rate (Max.) | 61.44 | MS/s |
| ADC Resolution | 12 | bits |
| DAC Sample Rate (Max.) | 61.44 | MS/s |
| DAC Resolution | 12 | bits |
| Host Sample Rate (16bit) | 61.44 | MS/s |
| Frequency Accuracy | ±2.0 | ppm |
| Specification | Typical | Unit |
| Power | ||
| USB Power | 5 | V |
| Physical | ||
| Dimensions | 83.3 x 50.8 x 8.4 | mm |
| Weight | 24.0 | g |
| Operating Temperature Range | ||
| B200mini | 0 – 55 | °C |
| B200mini-i | -40 – 85 | °C |
| B205mini-i | -40 – 85 | °C |
| B20Xmini-i | -40 – 85 | °C |
1. The HM B200mini and B200mini-i variants were released before the B205mini-i variant and are therefore supported by UHD version 3.9.0 or later. The HM B205mini-i is supported by version 3.9.2 or later. The HM B20X mini-I is support by version 3.9.2 or later and uses a sepcial FPGA image. Please contact us for this image.
2. All specifications are subject to change without notice.
3. Additional RF and digitizer specifications can be found on the ADI 9364 data sheet.
