The B200 and B210 hardware covers RF frequencies from 70MHz to 6 GHz, has a Spartan6 FPGA, and USB 3.0 connectivity. This platform enables experimentation with a wide range of signals including FM and TV broadcast, cellular, Wi-Fi, and more.
Product Details
● RF coverage from 70 MHz – 6 GHz
● GNU Radio, C++ and Python APIs
● USB 3.0 SuperSpeed interface
● Standard-B USB 3.0 connector
● Flexible rate 12 bit ADC/DAC
● Grounded mounting holes
USRP B200
● 1 TX & 1 RX, Half or Full Duplex
● Xilinx Spartan 6 XC6SLX75 FPGA
● Up to 56 MHz of instantaneous bandwidth
● USB Bus powered
USRP B210
● 2 TX & 2 RX, Half or Full Duplex
● Fully-coherent 2x2 MIMO capability
● Xilinx Spartan 6 XC6SLX150 FPGA
● Up to 56 MHz of instantaneous bandwidth in 1x1
● Up to 30.72 MHz of instantaneous bandwidth in 2x2
● Includes DC power supply
● GPIO capability

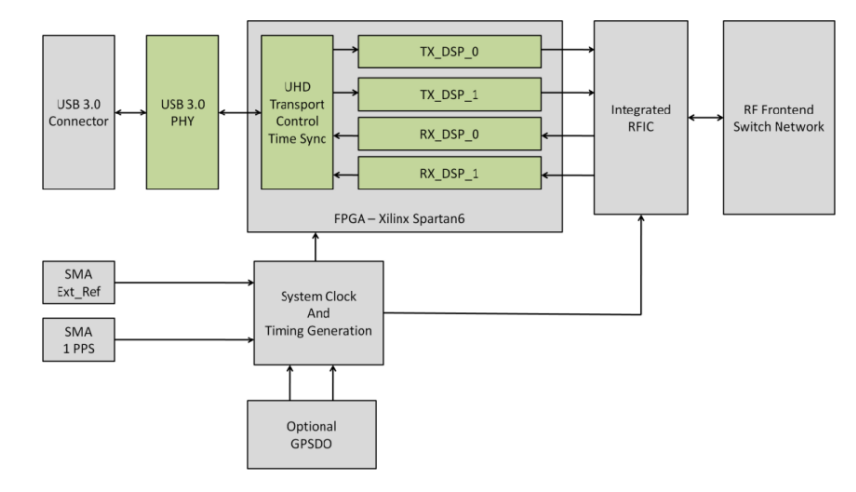

The B200 and B210 hardware covers RF frequencies from 70MHz to 6 GHz, has a Spartan6 FPGA, and USB 3.0 connectivity. This platform enables experimentation with a wide range of signals including FM and TV broadcast, cellular, Wi-Fi, and more. The USRP B200 features one receive and one transmit channel in a bus-powered design. The B210 extends the capabilities of the B200 by offering a total of two receive and two transmit channels, incorporates a larger FPGA, GPIO, and includes an external power supply. Both use an Analog Devices RFIC to deliver a cost-effective RF experimentation platform, and can stream up to 56 MHz of instantaneous bandwidth over a high-bandwidth USB 3.0 bus on select USB 3.0 chipsets (with backward compatibly to USB 2.0). Because the B200 and B210 are enabled with USRP Hardware Driver (UHD), users can develop their applications and seamlessly port their designs to high-performance or embedded USRPs such as the X310 or E310. UHD is an open-source, cross-platform driver that can run on Windows, Linux, and MacOS. It provides a common API, which is used by several software frameworks, such as GNU Radio. With this software support, users can collaborate with a vibrant community of enthusiasts, students, and professionals that have adopted USRP products for their development. As a member of this community, users can find assistance for application development, share knowledge to further SDR technology, and contribute their own innovations.
| Spspeec | Typ. | Unit |
| power | ||
| DC Input | 6 | V |
| Convertion Performance and Clocks | ||
| ADC Sample Rate (max) | 61.44 | MS/s |
| ADC Resolution | 12 | bits |
| ADC Wideband SFDR | 78 | dBc |
| DAC Sample Rate (max) | 61.44 | MS/s |
| DAC Resolution | 12 | bits |
| Host Sample Rate (16b) | 61.44 | MS/s |
| Frequency Accuracy | ±2.0 | ppm |
| W/ GPS Unlocked TCXO Reference | ±75 | ppb |
| W/ GPS Locked TCXO Reference | < 1 | ppb |
| Spec | Typ. | Unit |
| RF Performance(Single channel) | ||
| SSB/LO Suppression | -0.7 | dBc |
| 3.5 GHz | 1 | deg RMS |
| 6 GHz | 1.5 | deg RMS |
| Power Output | >10 | dBm |
| IIP3 (@ typ NF) | -20 | dBm |
| Receive Noise Figure | <8 | dB |
| Physical | ||
| Dimensions | 9.7x15.5x1.5 | cm |
| Weight | 350 | g |
